Carbon Trike

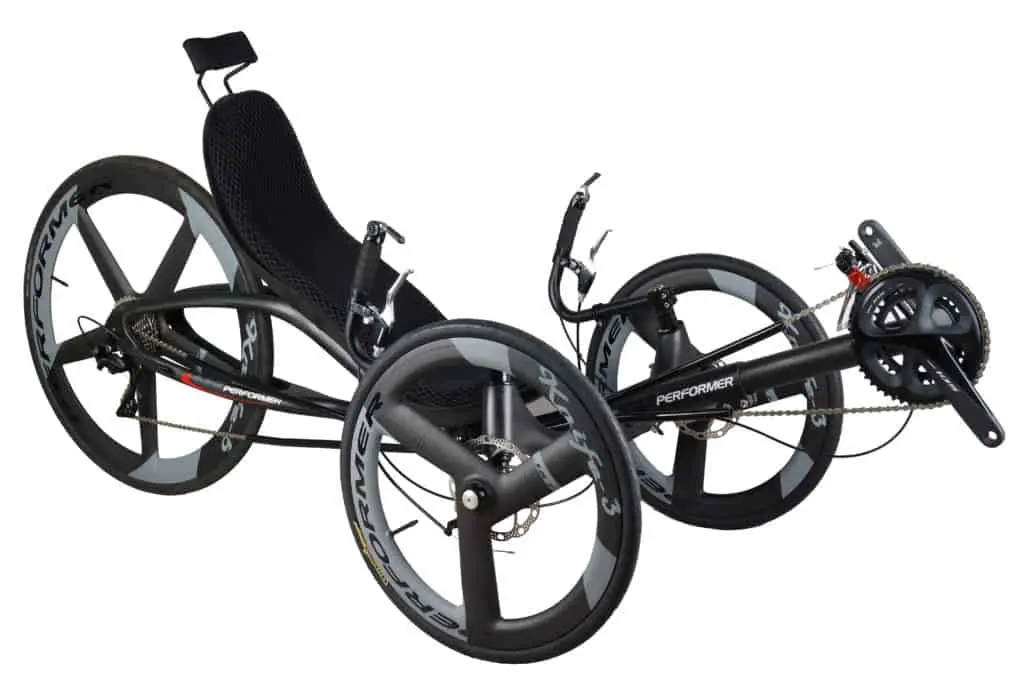

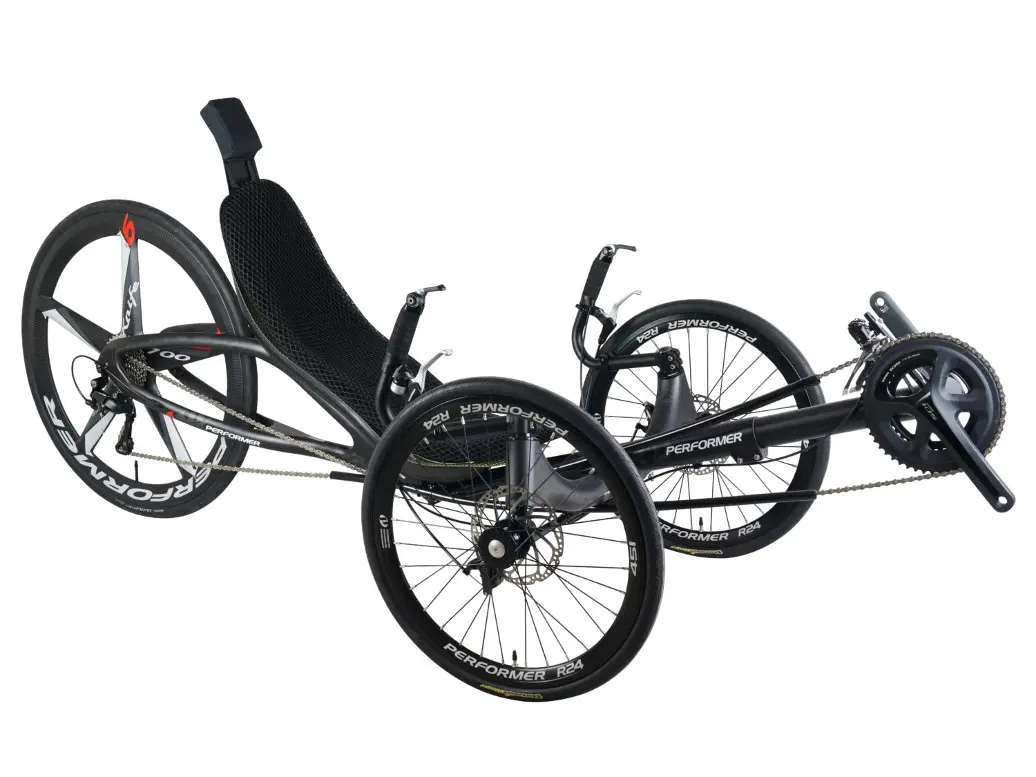

The Cantus carbon trike. New for 2020. We’ve been working on this one for quite some time. Now it’s here. Triking is fast and fun at any time, let alone when you get on a carbon trike. “Fast” and “fun” are off the charts!


ItemDescription
FrameCarbon fiber integrated
SeatFRP w/mesh cushion. headrest
Handle barAluminum
ShifterMicroshidt bar end shifter BS-M11
LeverParking Lever
Front DerailleurMicroshift FD-M622B
Rear DerailleurMicroshift RD-M665L
CranksetFSA 46/30t 170L
CassetteMicroshift CS-H110 11-32t
WheelsetF/20″x 451 R/X320 700C
TiresF/20′ x 451 R/700C x 35C
BrakesREVER:CX02 flat mount
MSRPUS$3,699


ItemDescription
FrameCarbon fiber integrated
SeatCarbon seat w/mesh cushion. headrest
Handle barAluminum
ShifterMicroshidt bar end shifter BS-M11
LeverParking Lever
Front DerailleurMicroshift FD-M622B
Rear DerailleurMicroshift RD-M665L
CranksetFSA 46/30t 170L
CassetteMicroshift CS-H110 11-32t

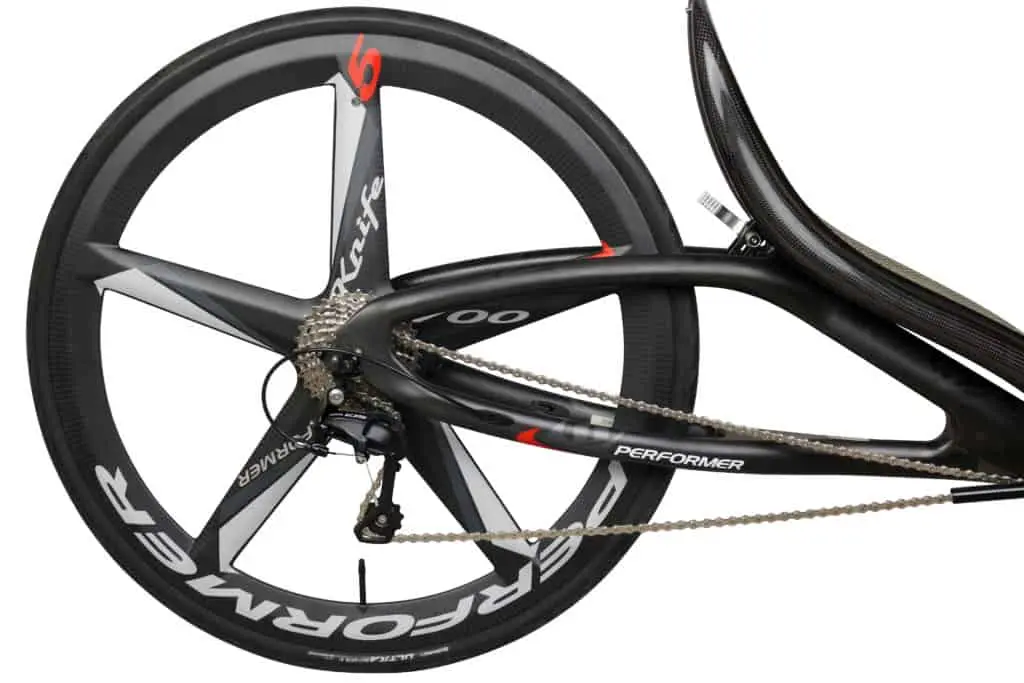

WheelsetF/20″ Tri-Spoke R/700C Five Spoke Carbon
TiresF/20′ x 451 R/700C x 35C
BrakesREVER:CX02 flat mount
MSRPUS$4,495


Bottom Bracket HeightSeat HeightSeat angle-from HorizontalWheel baseAverage weight/kg
46.5cm26cm40ﾟ116cmAbout 12.8kgs
Rider’s weight limitedX-seam/inch
120kgsAbove 37.5″

ItemDescription
FrameAluminum 7005
SeatFRP w/mesh cushion . headrest
Handle barAluminum handle bar / steering
ShiftersMicroshift bar end shifter M10
LeversParking lever
Front DerailleurMicroshift FD-M612B
Rear DerailleurMicroshift RD-M61L
CranksetFSA 46/30t 170L
CassetteMicroshift CS-H100 11-32T
Front wheelJalco X320 w / mono hub 28H
Rear wheelJalco X320 w / chosen A5017 32H
Tires20″ x1.5 / 700c x 35c
BrakesRever: CX02 flat mount
PedalClipless
Accessoriesfenders & rear rack & flag & mirror
MSRPUS$2,125


ItemDescription
FrameAluminum 7005
SeatFRP w/mesh cushion . headrest
Handle barAluminum handle bar / steering
ShiftersMicroshift bar end shifter BS-M11
LeversParking lever
Front DerailleurMicroshift FD-M622B
Rear DerailleurMicroshift RD-M665L
CranksetFSA 46/30 170L
CassetteMicroshift CS-H110 11-32t
Front wheelJalco X320 w / mono hub 28H
Rear wheelJalco X320 w / chosen A5017 32H
Tires20″ x1.5 / 700c x 35c
BrakesRever: CX02 flat mount
PedalClipless
AccessoriesFenders & rear rack & flag & mirror
MSRPUS$2,300


Bottom Bracket HeightSeat HeightSeat angle-from HorizontalTop of seatTop of Headrest
42.5cm26cm34-40 degrees83cm100cm
Wheel baseAverage weight/kgRider’s weight limitedX-seam/inch
105cm18.4kgs120kgsM : 36″~39.5″
L : 39.5″~48″
Wheel Size
20″ / 700c


JC 70 Mesh Seat
