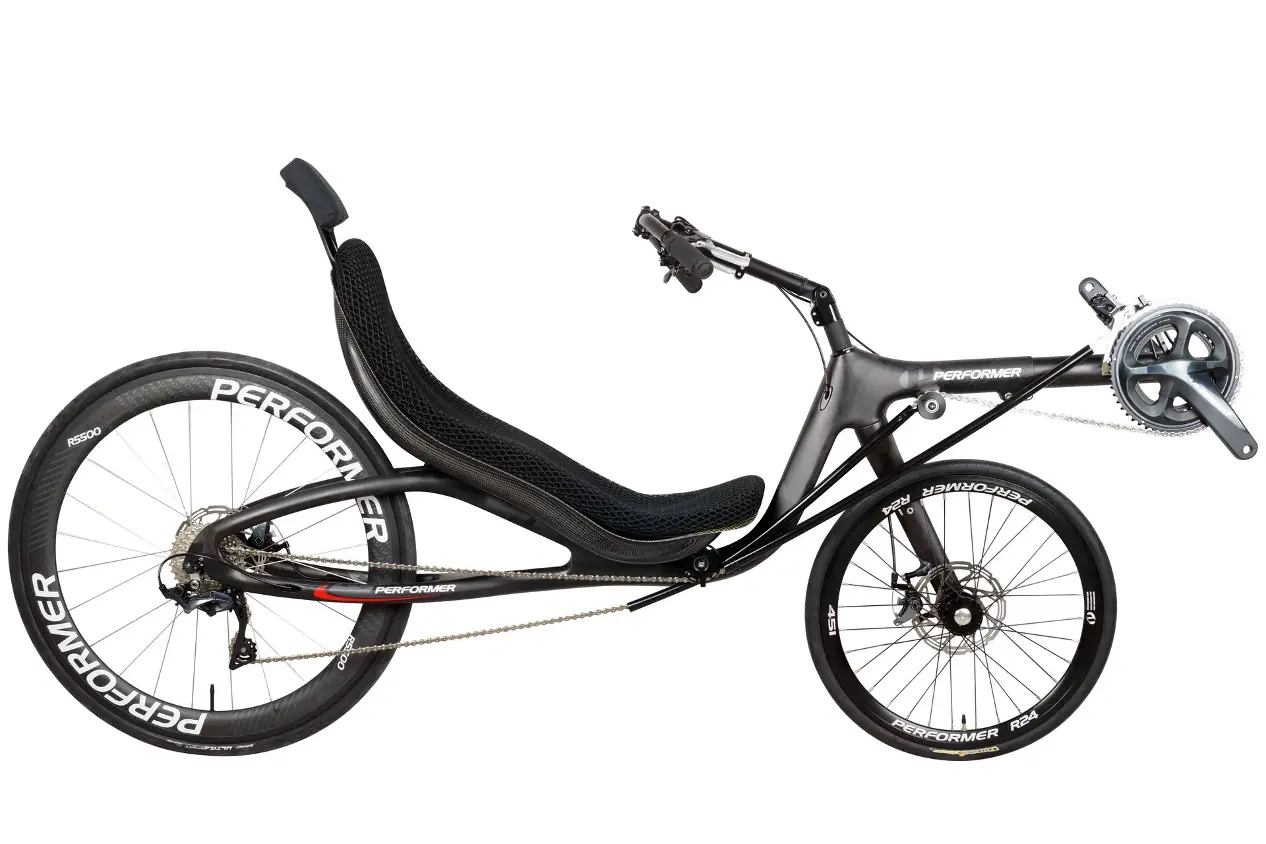

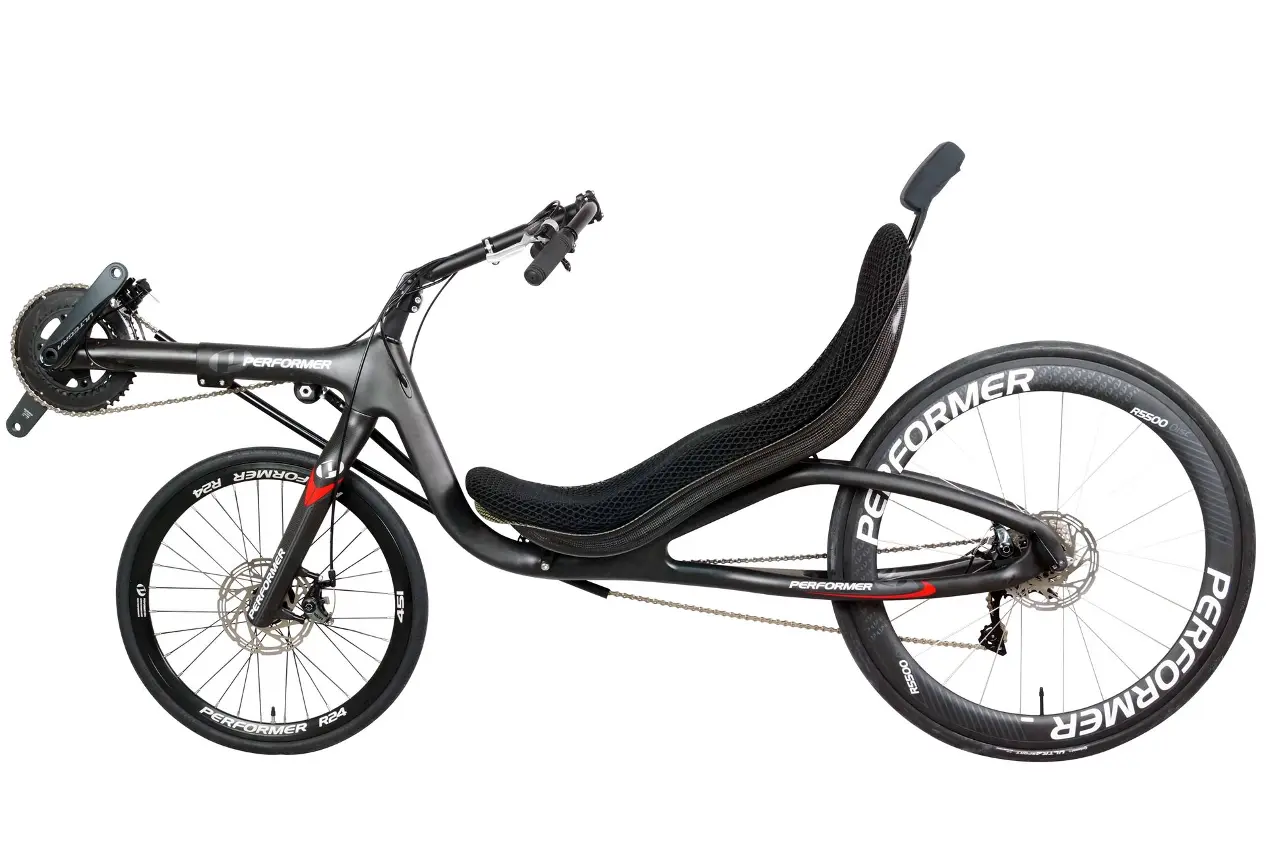

Carbon Recumbent Bike

Muses



Choose your color

Item
Description
Frame
Carbon fiber integrated
Front fork
Carbon fiber single fork
Seat
Carbon fiber seat w/mesh cushion. headrest
Handle bar
Mini bar + internal cable route tillerset
Shifters
Microshift bar end shifter M11
Levers
Parking Lever
Front Derailleur
Microshift FD-M622B
Rear Derailleur
Microshift RD-M665L
Crankset
FSA 46/30T 170L
Cassette
Microshift CS-H110 11-32t

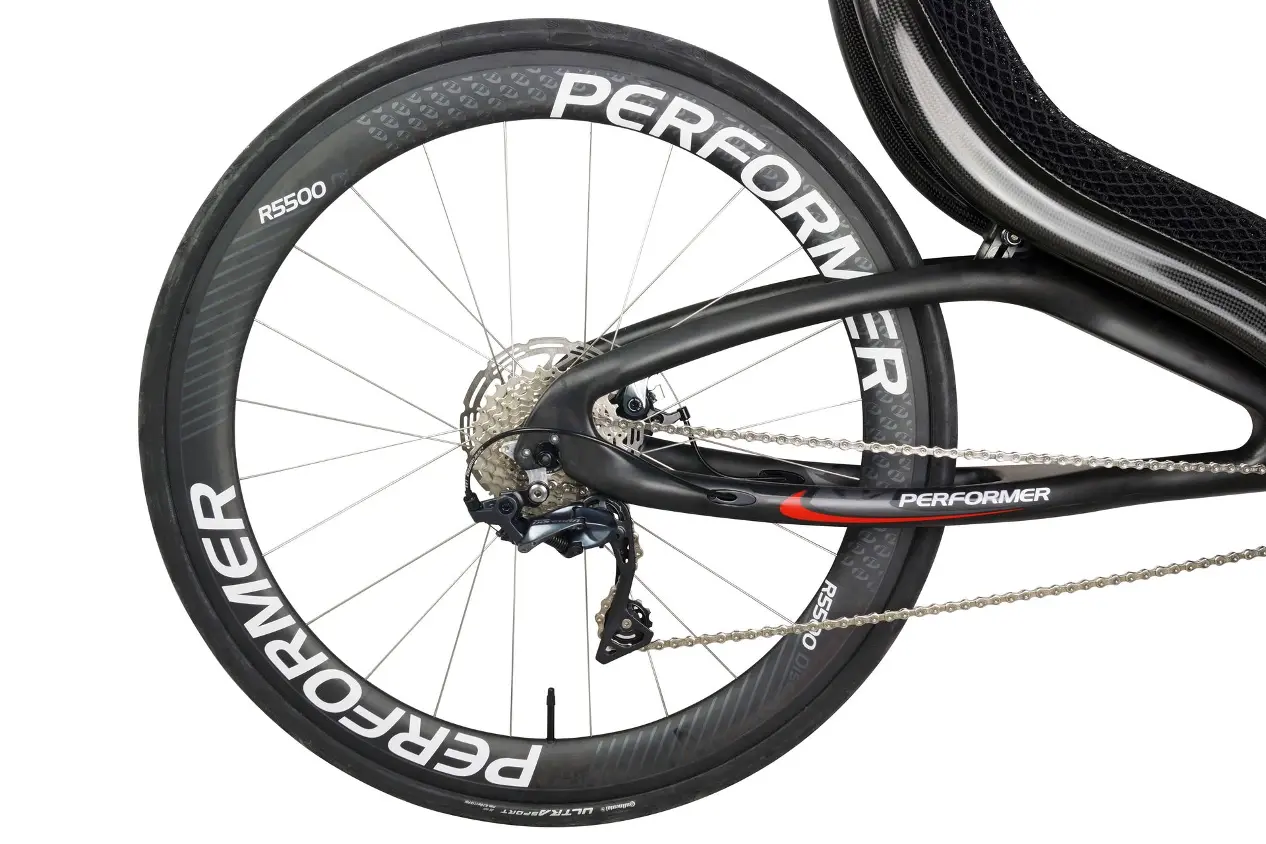

Wheelset
F/20″ x 451
R/R5000 carbon wheel
Tires
F/20″ x 451
R/ 700c x 28c

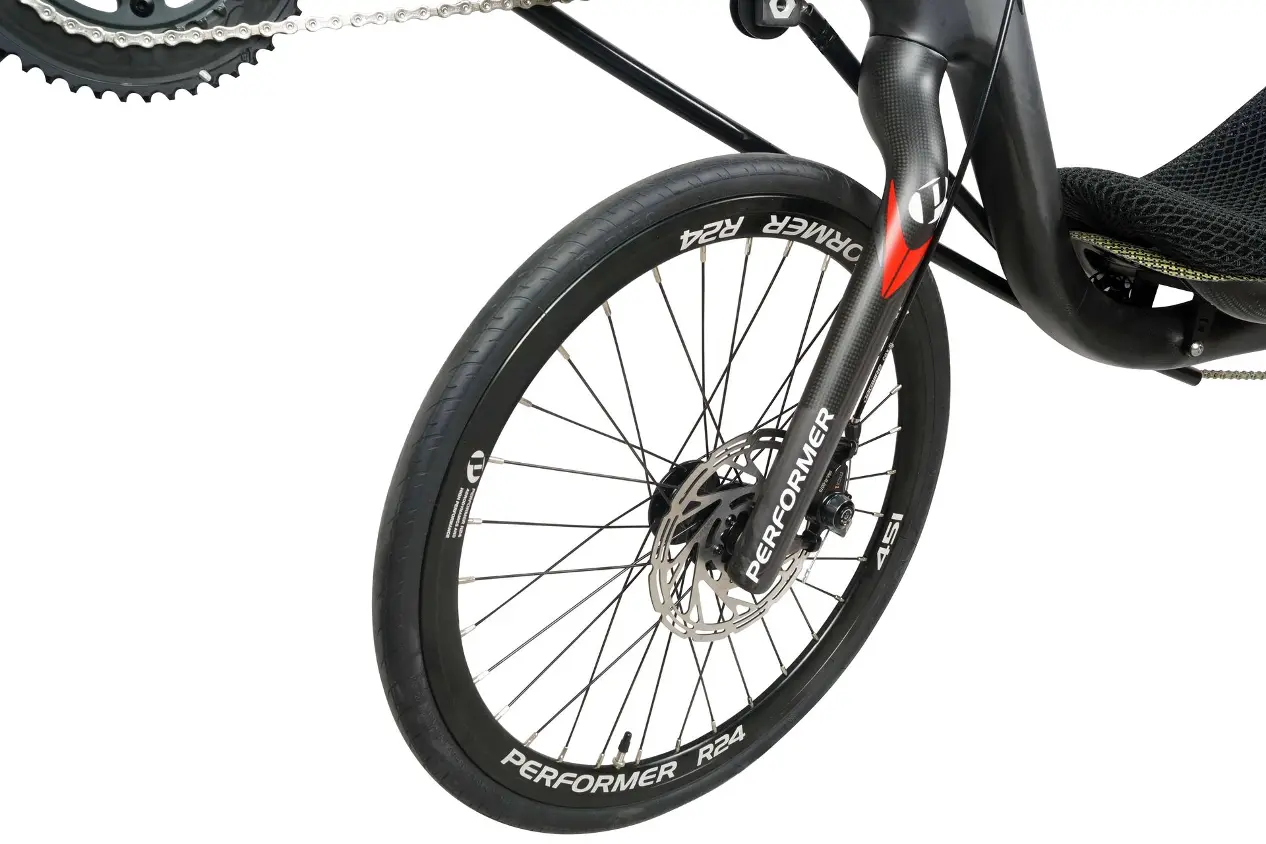

Brakes
REVER MCX02 flat mount
MSRPUS$4,299


ItemDescription
Framecarbon fiber integrated
Front forkcarbon fiber single fork
Seatcarbon fiber seat w/mesh cushion . headrest
Handle barmini bar + internal cable route tillerset
ShifterMicroshift bar end shifter M11
LeverParking Lever
Front DerailleurMicroshift FD-M622B
Rear DerailleurMicroshift RD-M665L
CranksetFSA 46/30T 170L
CassetteMicroshift CS-H110 11-32T
WheelsetF/20″ tri-spoke carbon wheel
R/700c five-spoke carbon wheel
TriesF/20″ x 451
R/ 700c x 28c
BrakesREVER MCX02 flat mount
MSRPUS$4,649


ItemDescription
Main FrameAluminum 6061
Rear forkCr-Mo
SeatFRP w/mesh cushion . headrest
Handle barAluminum handle bar / steering
ShiftersMicroshift bar end shifter M11
LeversParking Lever
Front DerailleurMicroshift FD-M622B
Rear DerailleurMicroshift RD-M665L
CranksetFSA 46/30t 170L
CassetteMicroshift CS-H110 11-32T
WheelsetF/mono 32H
R/chosen A5017 32H
Tires20″ / 26″ x 1.5
BrakesREVER MCX02 flat mount
PedalClipless
AccessoriesFenders, rear rack, flag, mirror
MSRPUS$2,555

Bottom Bracket Height
Seat Height
Seat angle-from Horizontal
Wheel base
Average weight/kg
66cm
40cm
30ﾟ~35ﾟ
124cm
About 11kgs
Rider’s weight limited
X-seam/inch
110kgs
Above 37.5″


ItemDescription
FrameAluminum 7005
SeatFRP w/mesh cushion . headrest
Handle barAluminum handle bar / steering
ShiftersMicroshift bar end shifter BS-M11
LeversParking lever
Front DerailleurMicroshift FD-M622B
Rear DerailleurMicroshift RD-M665L
CranksetFSA 46/30 170L
CassetteMicroshift CS-H110 11-32t
Front wheelJalco X320 w / mono hub 28H
Rear wheelJalco X320 w / chosen A5017 32H
Tires20″ x1.5 / 700c x 35c
BrakesRever: CX02 flat mount
PedalClipless
AccessoriesFenders & rear rack & flag & mirror
MSRPUS$2,300


Bottom Bracket HeightSeat HeightSeat angle-from HorizontalTop of seatTop of Headrest
42.5cm26cm34-40 degrees83cm100cm
Wheel baseAverage weight/kgRider’s weight limitedX-seam/inch
105cm18.4kgs120kgsM : 36″~39.5″
L : 39.5″~48″
Wheel Size
20″ / 700c


JC 70 Mesh Seat

Description


A carbon recumbent takes the recumbent experience to the next level. Riding a recumbent with a bunch of regular road bikes already gives you an advantage. That advantage becomes even more uneven when you take them on with a carbon recumbent. And when you find yourself clear of the pack there’s nothing left but to fully immerse yourself in that feeling that only a recumbent rider understands.
