Futuro — FRP Seat or Full Mesh

FRP Mesh

Choose your color

Tiagra 20 Speed
Bike Sizing & Fit Guide

Item	Description
Frame	Aluminium 6061
Fork	Aluminium 6061
Seat	FRP w/ mesh cushion . headrest
Handle bar	Aluminum Ubar
Shifter	Microshift bar end shifter M10
Lever	Parking lever
Front derailleur	Microshift FD-R353B
Rear derailleur	Microshift RD-M61L
Crankset	FSA 53/39t
Cassette	Microshift CS-H100 11-32T
Wheelset	Jalco X320 20″
Tires	20″ x 1.5

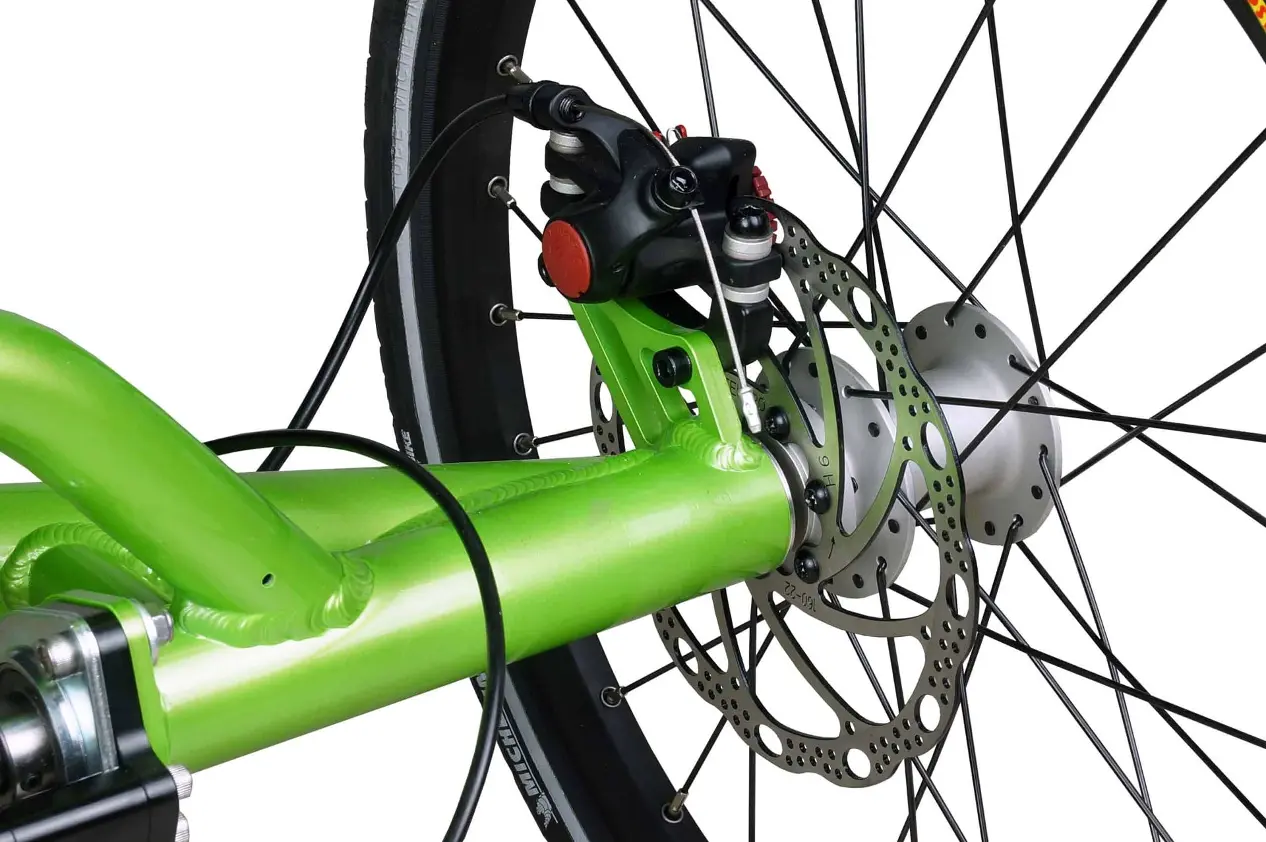

Brakes	Avid BB5 Disc brake
MSRP	US$2,625

Wheel Size	Bottom Bracket Height	Seat Height	Seat angle-from Horizontal	Top of seat	Top of Headrest
20″	53cm	43cm	34.5~40	90cm	110cm
Wheel base	Average weight/kg	Rider’s weight limited	X-seam/inch
153cm (X-seam 43.31″ )	19.2kgs	110kgs	36.2″~50.7″

Item	Description
Frame	Aluminum 7005
Seat	FRP w/mesh cushion . headrest
Handle bar	Aluminum handle bar / steering
Shifters	Microshift bar end shifter BS-M11
Levers	Parking lever
Front Derailleur	Microshift FD-M622B
Rear Derailleur	Microshift RD-M665L
Crankset	FSA 46/30 170L
Cassette	Microshift CS-H110 11-32t
Front wheel	Jalco X320 w / mono hub 28H
Rear wheel	Jalco X320 w / chosen A5017 32H
Tires	20″ x1.5 / 700c x 35c
Brakes	Rever: CX02 flat mount
Pedal	Clipless
Accessories	Fenders & rear rack & flag & mirror
MSRP	US$2,300

Item	Description
Frame	Aluminum 7005
Seat	FRP w/mesh cushion . headrest
Handle bar	Aluminum handle bar / steering
Shifters	Microshift bar end shifter M10
Levers	Parking lever
Front Derailleur	Microshift FD-M612B
Rear Derailleur	Microshift RD-M61L
Crankset	FSA 46/30t 170L
Cassette	Microshift CS-H100 11-32T
Front wheel	Jalco X320 w / mono hub 28H
Rear wheel	Jalco X320 w / chosen A5017 32H
Tires	20″ x1.5 / 700c x 35c
Brakes	Rever: CX02 flat mount
Pedal	Clipless
Accessories	fenders & rear rack & flag & mirror
MSRP	US$2,125

Item	Description
Frame	Aluminum 7005
Seat	FRP w/mesh cushion . headrest
Handle bar	Aluminum handle bar / steering
Shifters	Microshift bar end shifter BS-M11
Levers	Parking lever
Front Derailleur	Microshift FD-M622B
Rear Derailleur	Microshift RD-M665L
Crankset	FSA 46/30 170L
Cassette	Microshift CS-H110 11-32t
Front wheel	Jalco X320 w / mono hub 28H
Rear wheel	Jalco X320 w / chosen A5017 32H
Tires	20″ x1.5 / 700c x 35c
Brakes	Rever: CX02 flat mount
Pedal	Clipless
Accessories	Fenders & rear rack & flag & mirror
MSRP	US$2,300

Bottom Bracket Height	Seat Height	Seat angle-from Horizontal	Top of seat	Top of Headrest
42.5cm	26cm	34-40 degrees	83cm	100cm
Wheel base	Average weight/kg	Rider’s weight limited	X-seam/inch
105cm	18.4kgs	120kgs	M : 36″~39.5″ L : 39.5″~48″
Wheel Size
20″ / 700c

JC 70 Mesh Seat
